Monthly Archives: June 2018

Release 18.6

Leave a reply

Email Tasks

The ability to send pre filled or blank forms as links in  emails out to people for completion in their browser.  Capabilities include:

  1. Forms can only be filled in once by each recipient (unless the repeat flag is set)
  2. The URL to access the form includes a key so that the user does not need to have an account on the server
  3. You can upload email address and form names from a file and then have the emails sent to all of those addresses
  4. There is an unsubscribe link in all emails
  5. People can resubscribe, if they change their mind by going to the subscriptions page (on the home page select subscriptions)
  6. Emails with a pre-filled in form can be sent automatically when a submission is received for any other form

Really what this does is enable you to extend you data collection beyond the professional data collectors who have a logon on the server.  Hence you can do email surveys, as per Survey Monkey and also integrate input from external people in a multi step process.  So in fact Smap goes way beyond the capabilities in Survey Monkey.

Note: Email tasks are disabled on the sg server by default. Contact us if you want to use this feature.

Auto sending email tasks

You can also assign tasks that include previously collected data to an email address .   As with other tasks, that are completed by logged in users,  you can create these from previously submitted results or results as they come in.  Here is a video of an example process but there are an infinite number of ways you can use this feature:

After completing the steps shown in the above video and then doing an XLS report I got the following output:

Loading Email Addresses from an Excel File

Email tasks are managed from the tasks module,  From there you can create a task group and then click on the file menu to download an XLS file.  In this case for new task group it will be empty but you can specify the “tasks” here.

The columns with blue headings are where you put details about the form.  (See above). The columns with yellow heading contain details about the person being sent the email including of course their email address.  You can add multiple email addresses to be sent a single form hence the greyed out cells in the above example where we have one form but two email addresses.  Also you don’t need to fill in the URL column, this is only filled in when exporting in case you want to manually send the links out without using Smap’s email manager.

Once you have filled in your forms and email addresses.  Click on the Menu File > Load XLS.  Emails will not immediately be sent, you will then have the opportunity to review the loading emails and when you are ready you can select the menu “Email Unsent”.   This will send the emails with blank forms.

Unsubscribe From emails

This became urgently needed due to the addition of the “Email Tasks” functionality, however the unsubscribe link is now added to any email sent from the Smap server including for example an email adding you as a registered user.  If someone clicks on that link they are asked if they want to confirm the un-subscription.  If they say yes then they won’t be sent any more emails.   They only way to resume sending emails to an unsubscribed address is if you can persuade them to:

  • Goto to the server home page
  • Click on the subscriptions menu
  • And subscribe again

Updates to FieldTask version 5.5

Well this was released some time ago but I didn’t make an announcement on this news site so here it is.  Lots of new features here contributed by the folk from ODK as well as the fieldTask developers. Some of the main ones are:

  • Online lookup of data from a server while the user is completing the form. You can lookup reference data, choices for a select or query an AI web service.
  • Non printable characters in barcodes will now show as spaces rather than being removed completely
  • Includes ODKCollect 1.15
    – Can set a dark or light theme to change the screen appearance
    – Add a “file” type question that allows you to attach any file to the form







Server Outage

Leave a reply

I’d like to apologies for users of the sg server who experienced a 5 hour outage today. This should not have happened and was the result of deficiencies in my IT processes.

The number of surveys submitted to Smap hosted servers has been increasing over the last 3 years and is now averaging nearly 4,500 per day.

On the free sg server it is around 2,000 per day.  However on the 13th and 14th of June we received 11,897 submissions 80% of which included a high resolution image of a cocoa tree. This caused a big drop in the available disk space.

The IT process went:

  1. I received a text message that we were down to 4GB at 5pm UTC.
  2. Immediately ran some clean up scripts that freed up 9GB,
  3. I then added 60GB extra disk to the server.  However this disk is not made available until you reboot the server.
  4. The server was still being heavily utilised so I decided to wait until later in the evening to reboot when, given that most users are in Africa or Asia, the load should have been less.
  5. Then I forgot!

So instead of a 30 second outage we got 5 hours.  I will endeavour to ensure that this does not happen again.

Adding Artificial Intelligence to your forms

Leave a reply

Single-layer feedforward artificial neural – By Akritasa [CC BY-SA 4.0 (https://creativecommons.org/licenses/by-sa/4.0)]

Smap Forms are a great way of implementing what used to be known as “Expert Systems”.   While you are collecting data with a Form questions can be displayed or hidden based on their perceived “relevance”.   In the same way recommendations and feedback can be shown based on the answers that have been provided.  If A and B then show C.

One reason that this is great with Smap is that the expert advice can be embedded easily in a system whose primary function is the humdrum capturing of information.  It is not necessary for the user to sit down for a dedicated session of receiving expert advice.  Another reason is that a domain expert can create these forms without needing input from a programmer.

However these rules are a long way from Artificial Intelligence.  Once your form has collected the answers to 20 plus questions as multiple choice, text, audio, images and video then there may be critical information that you want to feedback to the user immediately hidden in that data that you cannot extract with a few “if” statements.

Version 5.5 of fieldTask (available from the google play store) adds the ability to call a server passing it data you have collected and to get back a response that can be used to guide the next steps.  You need to be filling out the form on line of course and the service you call need not be an Artificial Intelligence web service, it may just look up reference data, however we see the use of AI services in this way as particularly compelling.

You can try this out in fieldTask by adding a “calculate” that calls a lookup_image_labels() function.  So in an xlsForm your questions might look like this:

type           name                      label / calculation
image        scene                      Take a photo
calculate   scene_objects        lookup_image_labels(${scene})
note           show_objects        Objects in photo are: ${scene_objects}

And this is what the above form looks like on the phone.

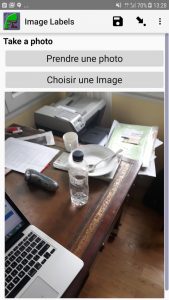

Firstly Take the Photo

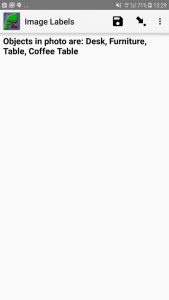

And here are the objects that were identified

Well this is not actually very useful!

The AI service called by lookup_image_labels() is the AWS Rekognition service that can identify things in photographs such as cars, people, computers, desks etc.   Even that task is done far from perfectly, it did not identify the  bowl, unwashed or otherwise.  And it will probably identify nothing that the person filling in the form could not identify for themselves.   This information would be useful on the server in order to search for images  but you can already generate these labels automatically, using Smap, once the form has been submitted.  It hardly seems necessary to make the person completing the form wait for these labels to be returned from the server.

So why do it?

Well actually the Rekognition service is just an example.  We can add calls to your custom AI engines that can identify patterns in the data or images and that may be critical in identifying the advice to be provided or the further information that needs to be collected.

Smap can be used to collect the data required to train an AI engine and now it can use the decisions from that AI engine in collecting more data creating positive feedback to add value to your processes.
